Cover Flange
The cover distributes fastener load around the sealing zone and protects the glass edge. Flatness and stiffness influence load uniformity.
Specify material, thickness, bolt pattern and tightening sequence.Engineering Overview
Treat the Sight Port as a Sealed Mechanical Assembly
A tank or vessel sight glass provides direct inspection of product level, color, clarity, foam, agitation, spray-cleaning and internal surfaces. The glass is only one part of the load path. A typical circular fitting includes a welded or threaded base, product-side gasket, borosilicate disc, cover-side cushion or gasket, cover flange and fasteners. Hygienic or illuminated designs add further interfaces.
SpecialGlass can process glass-only replacements from a controlled drawing and can review matched gasket and assembly requirements when included in the supply scope. For a new vessel, the equipment designer must define the applicable pressure-vessel rules and validate the complete fitting. For a replacement, provide the fitting standard, DN or model, clear viewing diameter and the dimensions of the original glass rather than choosing by vessel size alone.
The clear view is not the glass diameter.Pressure acts across the unsupported opening. The cover flange, gasket width, bolt preload and base stiffness determine how the glass edge is supported.
Vessel Sight Port Overview
| Supply boundary | Glass disc, glass/gasket replacement set, or reviewed complete viewing fitting |
|---|---|
| Reference geometry | DIN 28120-style fitting, sanitary fitting, threaded port, flow indicator or custom drawing |
| Glass material | Borosilicate sight glass to named standard/grade; other technical materials by duty |
| Dimensions | Outside diameter, thickness, clear view, sealing width, edge/chamfer and flatness |
| Pressure state | Design and operating pressure, full/partial vacuum, cycling and required test scope |
| Temperature | Product temperature, cleaning/sterilization temperature, gradient and thermal cycle |
| Medium & cleaning | Product chemistry, concentration, pH, solvent, CIP/SIP cycle and deposits |
| Fitting & gasket | Housing alloy, surface finish, gasket material, bolt pattern, tightening sequence and torque |
| Viewing accessories | Light, camera, wiper, spray ring, protective grid or coating when required |
Quotation framework only. Values and acceptance methods are locked to the approved drawing, named material, and assembly.
Explore the Load Path Through a Bolted Vessel Sight Glass
Select each layer to see why the glass cannot be specified independently from the fitting and seal.
Cover-Side Cushion
The upper gasket or cushion prevents hard metal-to-glass contact and helps equalize local clamping variation.
Use the fitting maker's approved material and thickness.Sight Glass Disc
The disc spans the clear aperture while its annular edge rests on the gasket. Material, prestress, sealing-face condition and dimensions are controlled.
State standard/grade, OD, thickness and certificate requirement.Product-Side Gasket
This seal contacts the process medium and transfers support to the glass. Compression behavior and chemical compatibility matter.
Name the elastomer/fiber/PTFE system and operating chemistry.Weld / Base Flange
The base connects the window to the vessel. Welding distortion or an uneven seat can bend the glass before pressure is applied.
Confirm flat seating surface, housing drawing and post-weld inspection.Classify the Sight Glass by Vessel Interface
A real interface difference changes the drawing, cleaning method, pressure boundary or maintenance access.
Standard Circular Port
Bolted Weld-On Sight Glass
Circular borosilicate disc captured between product and cover gaskets in a flanged vessel fitting.
Compact Vessel Port

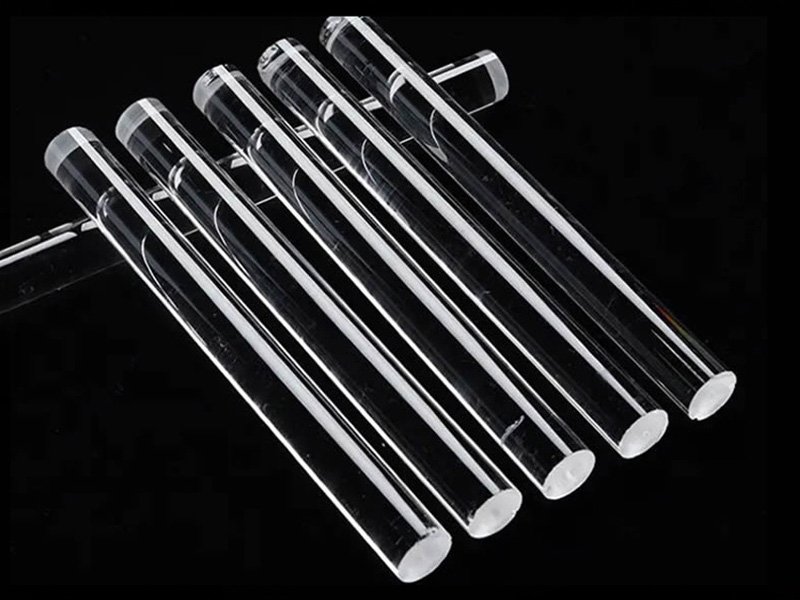

Threaded & Union Sight Glass
Smaller removable viewing ports where thread, seat, seal and installation torque require model-specific review.
Hygienic Equipment
Sanitary Tank Sight Glass
Crevice-controlled viewing components for food, beverage, cosmetic and bioprocess tanks, with cleaning and finish requirements.
Illuminated Inspection

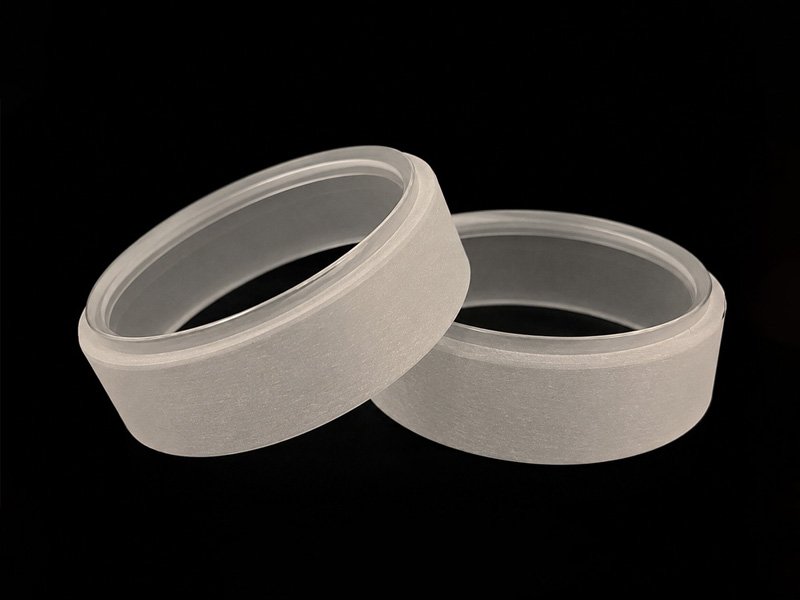

Sight Glass With Light or Camera
Viewing port coordinated with an external lamp, camera or separate illumination opening for continuous process observation.
Pipe Process View
Flow Indicator Glass
Glass windows or discs for inline indicators used to observe flow, bubbles, color or phase condition.
Technical Education
Why Uneven Bolt Load Can Break a Sound Glass Disc
A circular glass disc needs continuous, even support around its sealing annulus. If one fastener is tightened fully before the opposite side, or if the cover flange is warped, the disc can be bent locally. The resulting tensile stress is present before process pressure or thermal load is applied. A chip or hard particle in the gasket zone makes the contact even more concentrated.
Use clean contact faces, the specified gasket set, calibrated torque and a diametrically opposed tightening sequence. After welding a base fitting, verify that the glass seat has not distorted. These assembly controls are why an equipment supplier's pressure table cannot be transferred to a different housing simply because the glass has the same diameter and thickness.
13572468Cross-tighten
even cover loadgasketglassgasket
Choose the Fitting Route From Service and Maintenance
The glass component may look similar while the installation and validation requirements are very different.
| Decision factor | Bolted weld-on | Sanitary / union | Flow indicator | Custom high-duty port |
|---|---|---|---|---|
| Primary use | Permanent vessel observation | Frequent hygienic cleaning or removal | Inline process/flow view | Pressure, temperature, spectral or geometry challenge |
| Critical interface | Base/cover flange, gasket and bolt preload | Seal geometry, finish and cleanability | Body seat and paired window geometry | Complete calculation, material and validation plan |
| RFQ identifier | DIN/model/DN plus drawing | Connection size and hygienic standard | Indicator maker/model and glass pair | Full CAD and operating envelope |
| Maintenance focus | Torque, gasket and seating flatness | Seal condition and cleanability | Deposit removal and leak inspection | Documented inspection and replacement procedure |
Use this table to choose a development route. Final suitability depends on the complete pressure, temperature, medium, geometry, mounting, and test specification.
Drawing Preparation
Show DN, Glass OD and Clear View as Separate Dimensions
The vessel connection size does not uniquely define the glass. A replacement drawing should include glass OD and thickness, clear viewing diameter, gasket inside/outside diameters, bolt circle where relevant, edge profile and seating-face flatness. For a custom window, add vessel-wall curvature and welding/base details.
- Fitting standard, DN/model and revision
- Glass OD x thickness
- Clear viewing diameter
- Gasket ID/OD and material
- Cover/base flange and bolt circle
- Surface finish, flatness and hygienic requirements
DN / fittingØ glassØ clear view
Design Note
Gasket Compatibility Includes Compression and Chemistry
The product-side gasket must resist the process medium and cleaning cycle, but chemical compatibility is only one requirement. Thickness, compressibility, creep and surface finish determine how evenly it supports the glass. A very hard, damaged or incorrectly sized gasket can create local stress; an overly soft system may lose preload or extrude.
Specify gasket material and manufacturer where the fitting design depends on it. For hygienic equipment, include product contact, cleaning temperature, extractables or regulatory requirements and replacement frequency in the approval package.
Cover flangeCushionGlass discProcess gasketBase flangesupport + seal + chemistry
Verify the Glass and the Interfaces That Support It
A vessel-window inspection plan combines glass-component metrology with the gasket, flange and documentation requirements of the approved supply boundary.
Production Route
- 01Duty Review
Separate glass-only supply from a rated assembly and record pressure, temperature, medium, hazard, and optical task.
- 02Drawing & Standard
Lock dimensions, clear aperture, sealing face, edge profile, standard, datums, and documentation before cutting.
- 03Glass Processing
Cut or CNC the profile, grind edges, form grooves or features, and polish controlled faces in the qualified sequence.
- 04Strengthening & Cleaning
Apply the specified thermal process, controlled cleaning, marking, and protective handling without damaging sealing faces.
- 05Inspection & Packing
Release identity, dimensions, surface condition, optical quality, stress, and project tests before protected packing.
Release Checks
MaterialNamed glass grade/standard and traceable batch
Disc GeometryOD, thickness, clear-view relation, flatness and parallelism
Sealing ZoneEdge finish, chips, cleanliness and gasket-contact surface
Assembly PartsGasket identity, housing material and dimensional match if supplied
Viewing QualityDistortion, inclusions, scratches and illumination path
RecordsCertificates, inspection, marking, test scope and packing
Acceptance limits and records follow the approved drawing, material, applicable standard, and validation plan.
Tank and Vessel Sight Glass Questions
Define the sight-port boundary early so the quote covers the right component and documentation.
What information identifies a replacement tank sight glass?
Send the fitting maker/model or DIN reference, glass OD and thickness, clear view, gasket dimensions, pressure/vacuum, temperature, medium and photos of markings and the seat.
Is borosilicate glass always required?
Borosilicate sight glass is common because of its thermal and chemical properties and standardized forms. Fused silica or another technical material may be justified by wavelength, temperature or chemistry, but the assembly must be reviewed again.
Can SpecialGlass supply only the disc?
Yes, when a controlled drawing or approved standard size defines the component. State whether gaskets, housing parts, certificates or assembly tests are also required.
Can the same disc be used for full vacuum and positive pressure?
Only if the complete fitting is designed and validated for both load directions. The support and sealing behavior can change with pressure direction.
Why is bolt torque included in a glass RFQ?
Bolt preload controls gasket compression and load uniformity at the glass edge. Excess, insufficient or uneven torque can damage the glass or cause leakage.
Can a lamp be mounted directly on the sight glass?
Lighting should use a fitting designed for it and must not introduce hard contact, excessive heat or blocked maintenance access. Send the lamp/camera arrangement with the viewport drawing.
What documents are typical for hygienic or pressure equipment?
Requirements vary. State material certificates, surface-finish records, dimensional inspection, gasket documents, pressure-test scope, traceability and any customer or regulatory specification.
RFQ Preparation
Send the Complete Sight-Port Stack
The fastest review includes a section drawing through the vessel wall, both gaskets and the clear aperture.
- Glass-only, replacement set or complete fitting
- DIN/fitting model, DN and section drawing
- Pressure, vacuum, temperature, cycle and safety requirement
- Product medium, concentration, pH and CIP/SIP chemistry
- Glass OD/T, clear view, gasket ID/OD and bolt details
- Housing/gasket materials, finish, light/camera and documentation
Engineering Review Output
We return a proposed glass and process route, open assembly questions, sample plan, inspection points, and the claims that require validation.
