Cooking Appliances

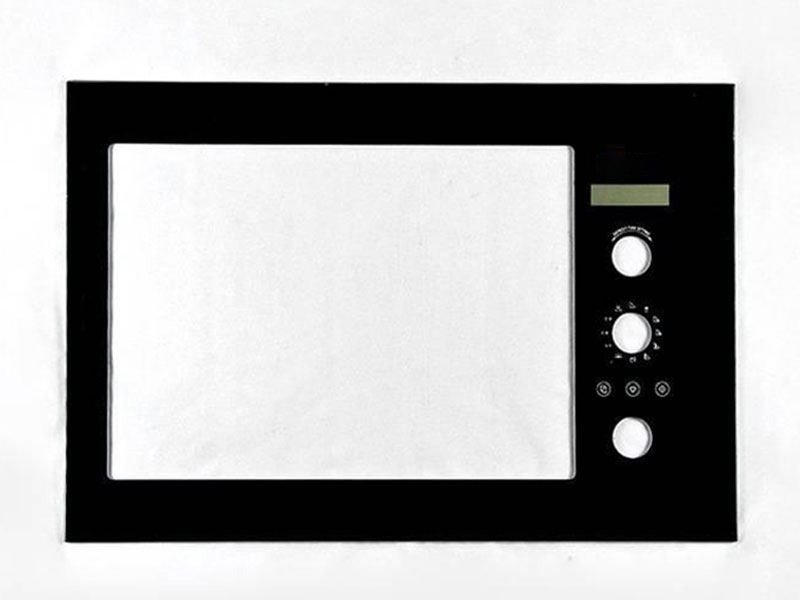

Oven & Microwave Control Panels
Printed fascias with knob openings, display windows and heat-aware material selection for controls near the appliance cavity.
Engineering Overview
Appliance Control Panel Glass Built Around the Interface
The control glass is the visible, touchable and structural face of an appliance interface. Its design must coordinate with the display, touch sensor, backlighting, housing and mounting method. A panel that looks correct by itself can still create light leakage, weak touch response or assembly problems when these interfaces are not reviewed together.
SpecialGlass manufactures custom panels from customer drawings and artwork. Material, strengthening, printing and surface treatment are selected for the actual operating temperature, panel thickness and validation requirements.
Start with the assembly, not only the glass.
Share the display window, sensor layout, mounting method and cleaning environment with the dimensioned drawing.
Technical Overview
| Glass substrate | Clear soda-lime, low-iron, aluminosilicate or heat-resistant glass after application review |
|---|---|
| Panel geometry | Flat profiles, radiused corners, holes, slots, display windows and CNC cutouts |
| Strengthening | Thermal tempering or chemical strengthening, matched to glass type and thickness |
| Printing | Opaque, translucent and clear zones with single or multicolor artwork |
| Surface options | Gloss, matte and selected AG, AR or AF treatments after compatibility review |
| Inspection plan | Dimensions, print position, color, opacity, surface quality, bow and strengthening checks |
Final material, tolerances and test criteria are confirmed during drawing and sample review.
Control Panel Glass by Appliance Type
Each appliance places different demands on heat exposure, touch performance, display contrast, cleaning and mounting. These are application families, not stocked replacement parts.
Cooktop Interface
Cooktop & Induction Control Strips
Touch-control zones and printed indicators developed around the sensor layout. Heated worktop glass is reviewed separately as glass-ceramic.
Ventilation Controls
Range Hood Control Panels
Black or color-printed control panels with touch icons, indicator windows and surface options selected for grease and frequent cleaning.
Cooling Appliances
Refrigerator & Freezer Display Glass
Display covers and control fascias with clear or tinted windows, printed borders and assembly tolerances coordinated with the door module.
Wet Environment
Dishwasher Control Panels
Compact interface glass reviewed for edge protection, touch operation, bonding and exposure to moisture and household cleaning products.
Laundry Controls
Washer & Dryer Interface Glass
Display and touch-control glass with shaped borders, central windows and print alignment matched to the electronic control assembly.
Compact Interfaces
Small Appliance Touch Panels
Custom glass for coffee machines, water dispensers, air treatment equipment and countertop appliances where graphics, display visibility and compact assembly must work together.
Unsure Where to Start?
Discuss the Application
Send the assembly drawing, not only the glass outline.
We can review the glass geometry together with the display, touch zones, housing and mounting method.
Material Selection
Choose the Glass Construction by Operating Requirement
There is no single substrate for every appliance control panel. Standard printed fascias, thin touch interfaces and panels close to heat sources require different material and strengthening decisions.
The table provides an initial engineering direction. Final selection depends on the unsupported area, edge design, impact requirement, thermal environment and validation plan.
| Design Requirement | Initial Direction | Review Focus |
|---|---|---|
| Standard printed fascia | Soda-lime glass | Thickness, tempering and mounting |
| Accurate light colors | Low-iron glass | Color sample and edge appearance |
| Thin touch interface | Aluminosilicate glass | Chemical strengthening and sensor stack |
| Panel near a heat source | Borosilicate review | Temperature gradient and thermal shock |
| Integrated heated worktop | Glass-ceramic review | Heating zone, print system and certification |
Dead-Front Printing and Display Window Review
Use the reference viewer to explore how the same dark interface changes when the backlight is on. The final appearance must be validated with the customer's actual LEDs, display, sensor stack and viewing conditions.
SPECIALGLASS
188°C
POWERMODETIMERLIGHT
Backlight off: icons and the display area blend into the dark surface.
Backlight
Reference Window
Reference transmission10%
Visual reference only. These controls do not represent measured SpecialGlass production data.
01
Why Dead-Front Printing Is More Than Black Ink
A dead-front window must hide the inactive display while transmitting enough light for clear information when illuminated. Ink density, print thickness, display color, air gaps and viewing angle all affect the result. Excessive opacity reduces brightness; insufficient opacity exposes the inactive display and can create uneven light leakage. For that reason, transmission targets and cosmetic limits should be approved on samples assembled with the real light source.
Define the Glass, Printing and Assembly Datum in One Drawing
The quotation drawing should identify the dimensions that control fit, touch alignment and the visible interface. Select a review mode to see which features require extra attention.
Review Mode
Standard Fit Review
- Overall length, width and thickness
- Hole, slot and corner locations
- Edge finish and exposed edges
- Housing clearance and mounting method
No automatic pass or fail is shown. Feasibility and tolerances are confirmed after the glass type, thickness and strengthening route are known.
02
Why Holes and Cutouts Are Finished Before Tempering
Holes, slots and sharp internal corners concentrate stress. Their diameter, edge distance and surface finish influence breakage risk during processing, tempering, assembly and service. For thermally tempered glass, cutting and mechanical machining are normally completed before the strengthening cycle. The drawing review therefore checks fragile features early, when the geometry can still be adjusted without compromising the finished panel.
Interface Appearance
Printing and Surface Options

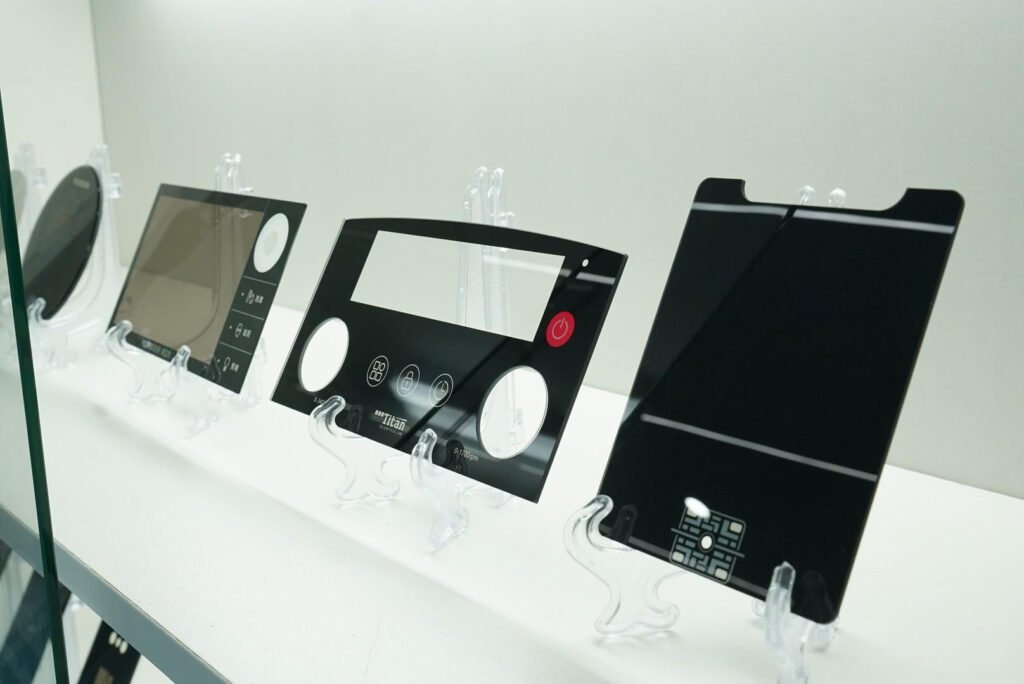

Artwork is reviewed as a functional layer of the interface. Opaque borders mask the electronics, translucent zones control illuminated graphics and clear areas expose displays or sensors. The print system must remain compatible with the substrate and strengthening sequence.
Opaque PrintingMasking borders, brand colors and permanent graphics

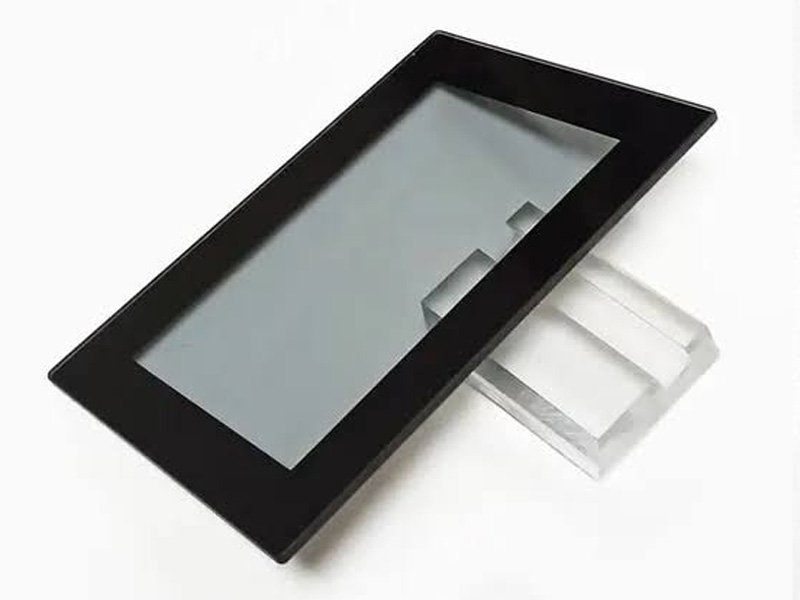

Display WindowsClear, tinted or dead-front zones matched to the light source
Touch GraphicsIcons and sliders registered to the sensor layout
Surface FinishGloss, matte or selected easy-clean treatments
Sensor WindowsOptical or IR requirements reviewed with the electronics
Color ApprovalPhysical samples and agreed inspection conditions
From Drawing Review to Approved Production Panel
The process route is established around the material, shape, print system and strengthening requirement. Inspection points are defined before the sample is approved.
Manufacturing Route
- 01Drawing and Artwork Review
Confirm datums, critical dimensions, visible zones and revision control.
- 02Cutting and CNC Processing
Form the profile, holes, slots and display openings before strengthening.
- 03Edge Finishing and Cleaning
Prepare exposed edges and a controlled surface for printing or coating.

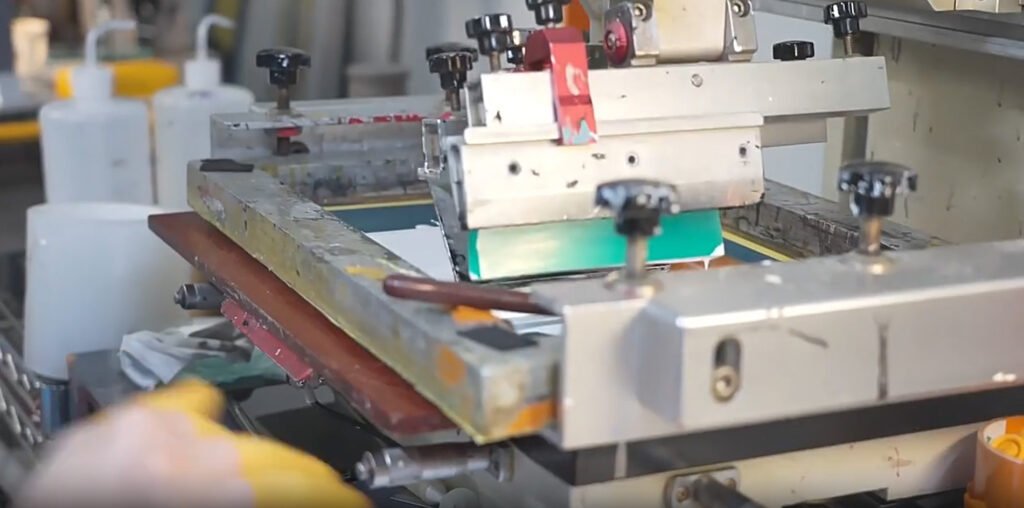

- 04Printing and Strengthening
Use a process sequence compatible with the glass substrate and ink system.
- 05Final Inspection and Packaging
Inspect the approved characteristics and protect finished surfaces in shipment.
Inspection Plan
GeometryDimensions, holes, slots and corner radii
InterfaceWindow position and print registration
AppearanceColor, opacity, pinholes and surface defects
AssemblyFlatness, bow and bonding-area review
StrengtheningMethod-specific checks and agreed evidence
ReleaseApproved sample, revision and packaging standard
Test methods, sampling level and acceptance limits should be agreed in the drawing, quality agreement or purchase specification.
Appliance Control Panel Glass FAQs
Answers are general design guidance. Final values depend on the drawing, material, processing route and validation requirements.
What glass is normally used for appliance control panels?
Thermally tempered soda-lime glass is a common starting point for standard printed fascias. Low-iron glass can improve light colors, while aluminosilicate, borosilicate or glass-ceramic may be considered for thin, impact-sensitive or heat-related designs.
Can a dead-front window work with different LED colors?
Yes, but the ink stack and transmission target should be evaluated with each intended light source. LED color, brightness, display construction, air gaps and ambient light can change the visible result.
Can holes and cutouts be added after thermal tempering?
Mechanical cutting and drilling are normally completed before thermal tempering. Post-tempering machining can release the surface stress and break the panel.
How should I specify a display window?
Define the visible area, location datum, transmission or appearance target, display color, backlight condition and whether the inactive display must be hidden. A physical assembled sample is recommended for approval.
Can AF treatment and printing be used on the same panel?
They may be combined when the coating area, print side, curing conditions and process sequence are compatible. The complete stack should be reviewed before quotation.
What files are required for a quotation?
Send a dimensioned glass drawing, vector artwork, material or thickness preference, assembly information, application conditions, estimated quantity and required inspection criteria.
How is print color controlled between samples and production?
Color references, sample approval conditions, measurement method and allowable variation should be agreed before production. Lighting, substrate color, ink thickness and surface finish all influence the observed color.

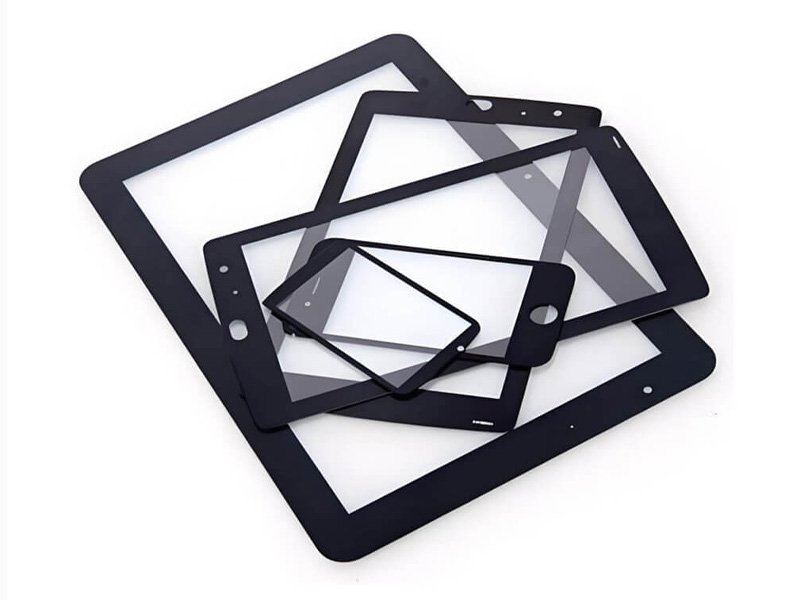

Can the glass be designed for capacitive touch controls?
Yes. The review should include glass thickness, dielectric stack, sensor layout, printed areas, adhesive, air gaps and the required touch performance after final assembly.
RFQ and Manufacturing Review
What to Send for a Manufacturability Review
Include: Lit and unlit appearance | Touch response after assembly | Display color and viewing angle | Housing fit and bonding area | Color and cosmetic approval sample | Drawing and artwork revision | Dimensioned PDF, DWG or DXF drawing.
A control panel should not be approved from an unlit glass sample alone. Evaluate the panel with the intended display, backlight, touch sensor, adhesive or frame and cleaning method.
