Industrial sight glass lets an operator, camera or sensor observe a process without opening the equipment. The component may show liquid level, flow, foam, color, flame, tool condition or a machine cycle. Those tasks look similar in a photograph, but they impose very different thermal, mechanical, chemical and optical requirements.
SpecialGlass supplies drawing-based glass components and develops the processing route around the named material and intended assembly. A round DIN-style disc, a reflex gauge plate, a tank window and a machine safety panel are not interchangeable. The first engineering decision is therefore whether the RFQ covers glass only, a replacement matched to an existing fitting, or a complete performance-validated panel or assembly.
| Product scope | Glass-only disc/plate, matched replacement, framed panel, or reviewed assembly |
|---|---|
| Material route | Prestressed borosilicate, borosilicate 3.3, aluminosilicate, fused silica, or safety composite |
| Geometry | Diameter or L x W, thickness, clear aperture, sealing width, edge profile, holes and steps |
| Operating envelope | Design/operating pressure, vacuum, continuous and peak temperature, cycles and gradient |
| Process medium | Steam, water chemistry, acid/alkali, solvent, food product, oil, coolant, gas or vacuum |
| Optical task | Direct viewing, liquid-level contrast, camera imaging, visible/UV/IR transmission or glare control |
| Assembly inputs | Housing drawing, gasket, support diameter, bolt pattern/torque, frame overlap and seal |
| Quality controls | Material identity, flatness, parallelism, surface/edge quality, strengthening and marking |
| Documentation | Drawing revision, inspection report, certificate, test plan and lot traceability as agreed |
Quotation framework only. Values and acceptance methods are locked to the approved drawing, named material, and assembly.
Choose the primary task. The result identifies the page, material inputs and assembly questions that should lead the RFQ.
Use the broad route for round or shaped viewing components when the fitting, clear aperture and operating envelope are known.
Level gauges need the correct optical principle, DIN form, steam duty, water chemistry and protective shield strategy.

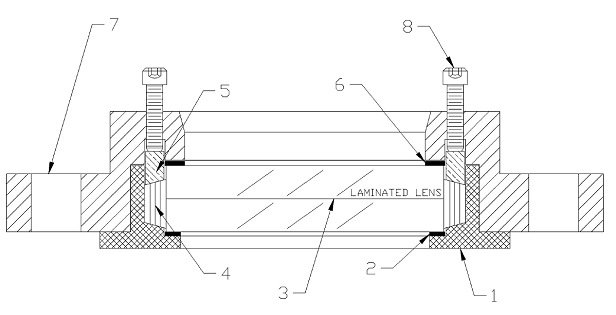

Treat the glass, gasket, cover flange, welding base, bolt preload and illumination as one viewing assembly.
Choose the substrate and treatments from the visibility task and exposure. Confirm separately whether the pane is part of a safety guard.
A protective vision panel requires a defined composite, frame overlap, installation and impact-validation route. Ordinary tempered glass is not a substitute.
The collection avoids mixing level indication, pressure-vessel observation and machine guarding into one generic sight-glass claim.
Borosilicate, aluminosilicate or fused-silica discs and plates processed to a fitting drawing or approved size series.

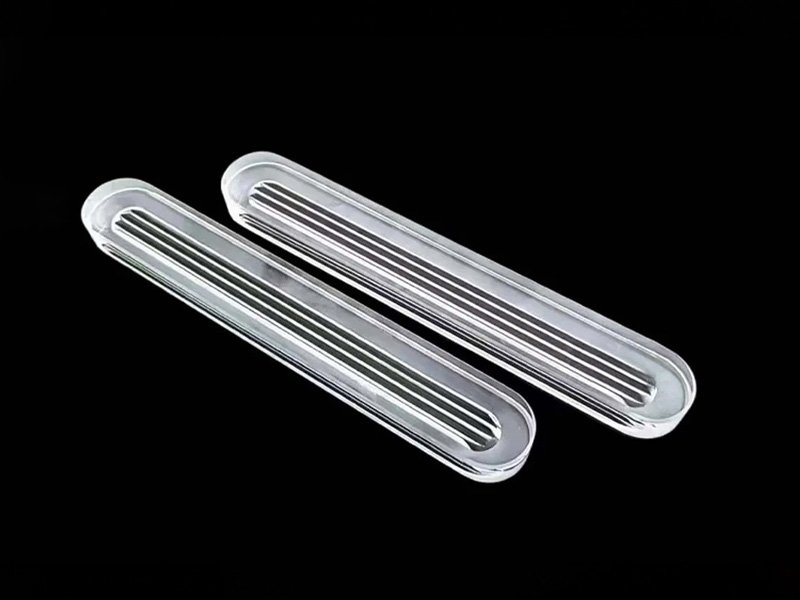

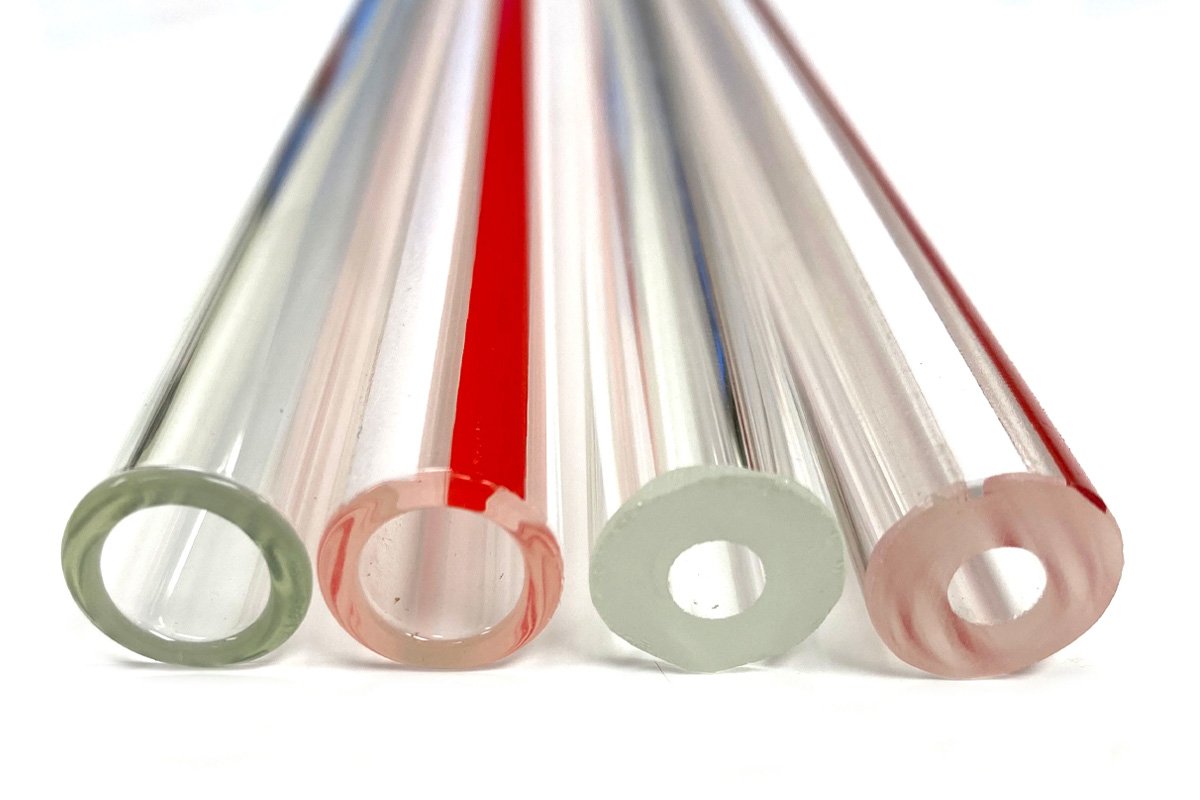

Reflex and transparent gauge glass selected by steam duty, water chemistry, chamber and shield requirement.

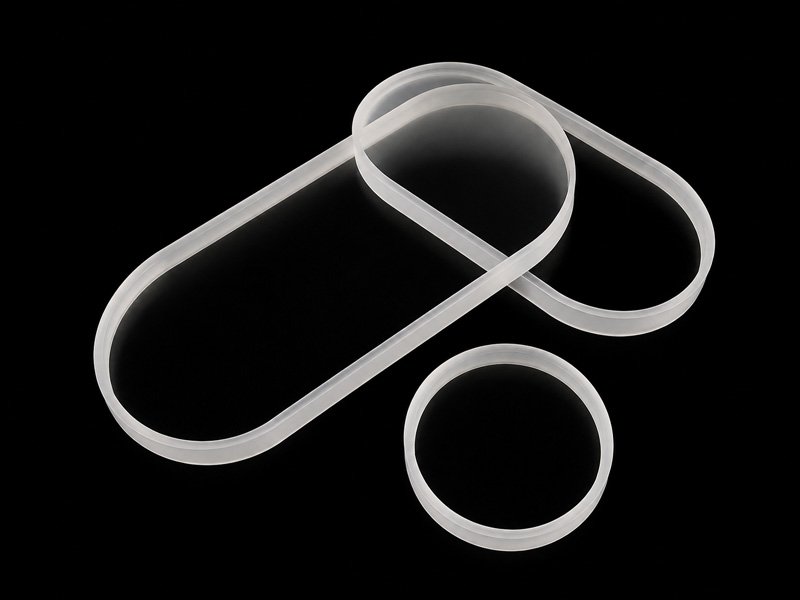

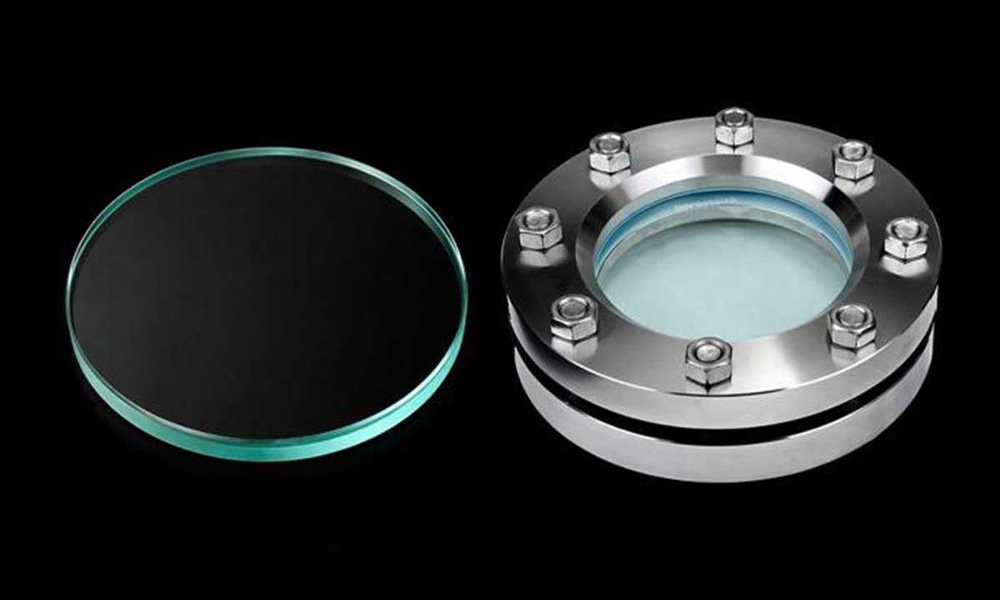

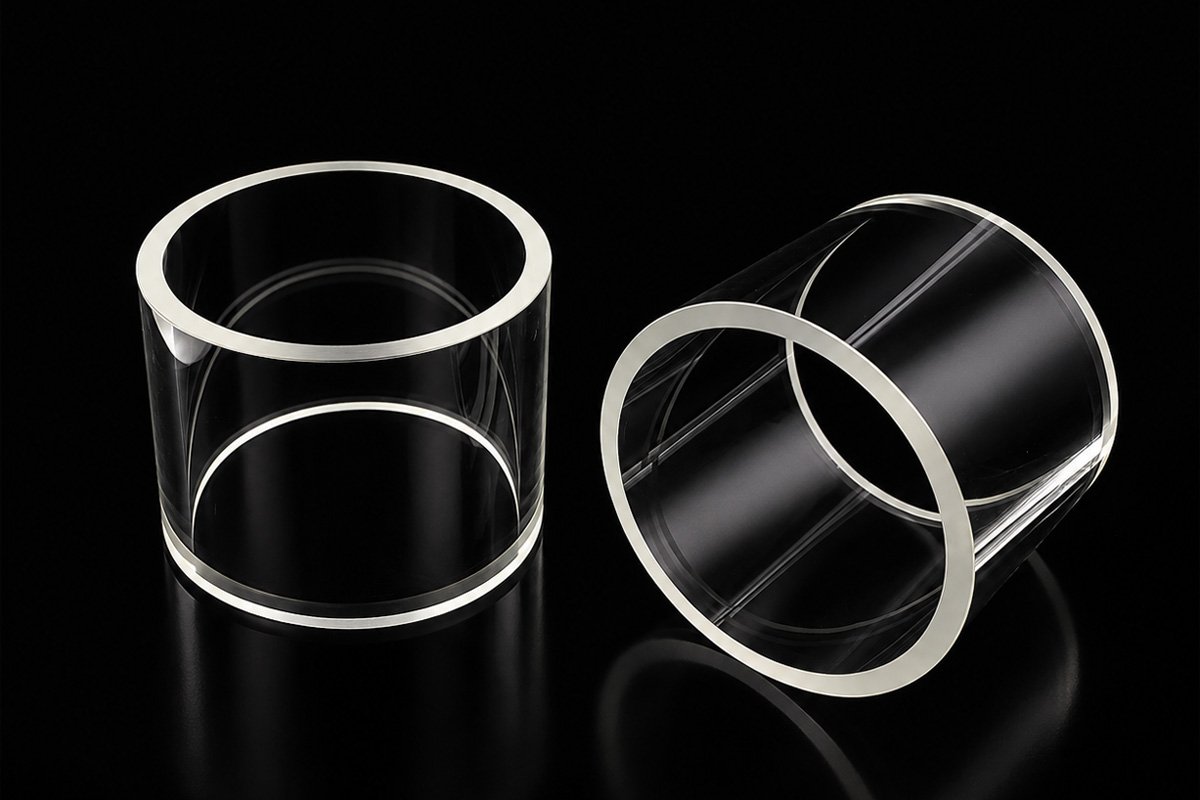

Glass discs, gasket interfaces and optional viewing assemblies for reactors, tanks, sanitary vessels and flow ports.
Custom machine windows for operators, cameras and sensors exposed to coolant, chips, heat or cleaning.
Glass/polycarbonate composite panels developed around impact containment, sealing, overlap and replacement life.
Commercial names are only a first filter. The named grade and finished geometry still require review.
| Selection factor | Borosilicate sight glass | Aluminosilicate | Fused silica | Safety composite |
|---|---|---|---|---|
| Typical reason to select | Balanced heat, chemistry and standard forms | Selected higher-load or temperature systems | UV, purity, very low expansion or high-temperature optics | Projectile retention plus scratch/chemical protection |
| Optical task | Direct visible viewing | Visible level/process viewing | Visible, UV or grade-specific IR | Operator visibility through a guard |
| Critical specification | Standard, prestress, aperture and assembly | Named grade and validated load case | Wavelength, OH/purity, surface quality and mounting | Complete tested stack, seal, frame and overlap |
| Common mistake | Using sheet-material temperature as a viewport rating | Assuming all aluminosilicate grades are equivalent | Ignoring grade and contamination | Calling a single tempered pane a machine-safety window |
Use this table to choose a development route. Final suitability depends on the complete pressure, temperature, medium, geometry, mounting, and test specification.
Pressure acts across the unsupported clear aperture, while the edge is supported through a gasket and housing. Increasing thickness can reduce bending stress, but a larger aperture, uneven clamp load, damaged sealing edge, thermal gradient or rigid contact can change the stress field dramatically. That is why DIN-style tables pair dimensions with a particular geometry and why equipment suppliers publish assembly-specific pressure-temperature limits.
For a custom viewport, provide the support diameter, gasket width and material, housing section, bolt arrangement, operating and design conditions, medium and required safety factor. We can then identify whether a standard glass size applies or whether the complete assembly needs calculation and validation by the equipment designer.
A useful drawing separates outside size from the unsupported viewing aperture. The annular or rectangular sealing zone must remain flat, clean and free from chips that can create local load. Steps, chamfers and hole positions need datums rather than informal edge measurements.
A replacement glass can be manufactured to an approved drawing, size code and material specification. Its inspection report can cover the glass itself. A pressure-rated or impact-rated assembly includes the housing, gasket, preload, frame, installation and test evidence. The RFQ should state which boundary SpecialGlass is expected to supply and which party owns final equipment compliance.
This distinction prevents an attractive material data-sheet value from being mistaken for a machine or pressure-vessel certification. It also makes quotation faster because the required drawings, tests and documents are clear at the beginning.

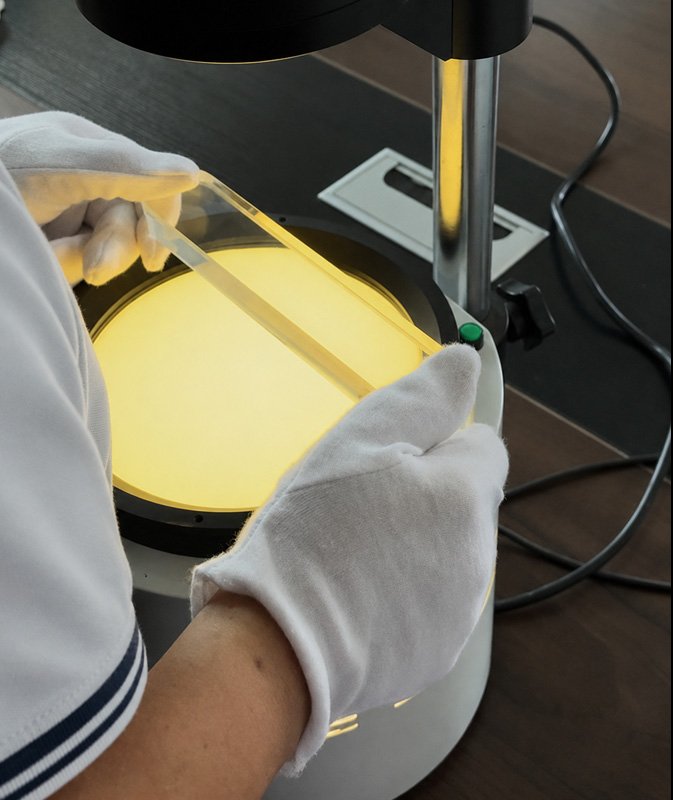

Sight-glass release inspection combines traceable material, controlled strengthening, sealing-zone geometry and the optical quality needed for the actual observation task.
Separate glass-only supply from a rated assembly and record pressure, temperature, medium, hazard, and optical task.
Lock dimensions, clear aperture, sealing face, edge profile, standard, datums, and documentation before cutting.
Cut or CNC the profile, grind edges, form grooves or features, and polish controlled faces in the qualified sequence.
Apply the specified thermal process, controlled cleaning, marking, and protective handling without damaging sealing faces.
Release identity, dimensions, surface condition, optical quality, stress, and project tests before protected packing.
Acceptance limits and records follow the approved drawing, material, applicable standard, and validation plan.
These questions establish the engineering boundary before a price or performance statement is made.
Thermally prestressed borosilicate is common for standardized process sight and gauge glass. Borosilicate 3.3, aluminosilicate or fused silica may be selected for different thermal, pressure, chemical or spectral duties. Use the named grade and assembly conditions.
A sample helps identify shape and edge details, but it does not reveal the original prestress, standard or safe operating limit. Send the equipment model, drawing, material marking and operating data wherever possible.
Not by itself. Pressure resistance also depends on clear aperture, support, edge condition, gasket, clamp load, temperature, medium, safety factor and the applicable design method.
Sight glass is a broad viewing-window term. Gauge glass usually refers to a level-indicator component, commonly reflex or transparent, with a defined optical and chamber geometry.
It can be considered when wavelength or thermal expansion requires it, but grade, surface condition, geometry and complete assembly validation remain necessary. A fused-silica material property is not an automatic pressure rating.
State the drawing revision, material certificate requirement, dimensional report, surface/edge inspection, marking, lot traceability and any assembly or pressure test expected from the supplier.
Many features can be processed before strengthening where the material route allows. Send datums, radii, edge distances and sealing zones so manufacturability and risk can be reviewed.
A useful request lets us separate a standard replacement from a new engineered window and identify claims that require assembly-level validation.
We return a proposed glass and process route, open assembly questions, sample plan, inspection points, and the claims that require validation.
Prepare the RFQSend the drawing, operating envelope, medium, assembly details, quantity, and required documentation.
Tell us the material, size, thickness, tolerance, quantity, application, and any holes, slots, edges, coating, printing, or polishing requirements. We can manufacture custom glass components from your drawing, CAD file, sketch, or sample.
