Heat-resistant glass is not one material. Borosilicate, glass-ceramic and fused silica have different expansion, optical transmission, chemical behavior and processing limits. Tempered Low-E float glass also has an important role in insulated oven-door stacks where the pane is not directly exposed to flame.
A useful specification states continuous temperature, peak duration, hot-to-cold gradient, cooling event, atmosphere, viewing wavelength, unsupported span and mounting condition. These inputs determine whether the project belongs on a material page or a finished-product page.
| Continuous duty | Normal hot-face and edge temperatures plus exposure duration |
|---|---|
| Peak event | Maximum temperature, dwell time and number of cycles |
| Thermal gradient | Difference between hot zone, cooled edge, frame and ambient |
| Thermal shock | Quench, wash-down, door opening, cold air or rain exposure |
| Optical task | Visible viewing, UV transmission, IR transfer or radiant-heat reflection |
| Atmosphere | Combustion gas, steam, vacuum, chemicals, deposition or cleaning media |
| Geometry | Net size, thickness, aperture, holes, slots, radius and edge finish |
| Assembly | Frame restraint, gasket, clearances, pressure differential and failure consequence |
Reference framework for quotation. Controlled values and test methods are stated in the approved specification.
Each route answers a different buying question and uses its own technical parameters.
Transparent, tinted, translucent or opaque glass-ceramic for severe gradients and heat.

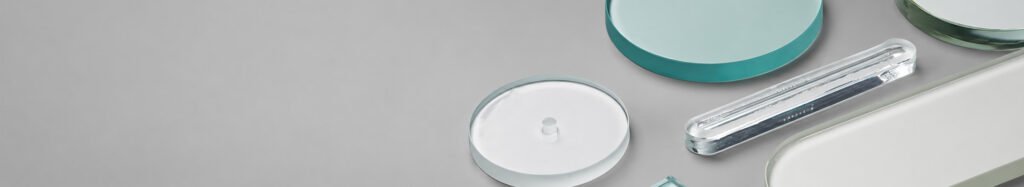

Borosilicate 3.3 plates, windows and components for moderate heat and chemical duty.
UV-capable, low-CTE quartz and fused silica parts selected by grade and spectrum.
Flat, curved, printed, tinted and coated panels reviewed with the frame and gasket.
Tempered and Low-E oven-door panes plus glass-ceramic IR heater covers.
Furnace, kiln and equipment windows selected by heat, atmosphere and wavelength.
Choose the dominant operating problem. The result is an initial route, not a finished design rating.
Near-zero-expansion glass-ceramic is the first material to review when the center and edge see very different temperatures or abrupt cooling.
Borosilicate often balances clarity, chemical durability, fabrication and cost for moderate thermal duty.
Fused silica is the first route when UV transmission, purity, optical homogeneity or very low CTE controls selection.
Pane position, Low-E coating orientation, cavity spacing and cooling determine the thermal result.
Select the material with the hot-face temperature, gradient, atmosphere, wavelength and mounting assembly together.
The comparison explains why the same part drawing can require a different material when the thermal cycle or optical task changes.
| Property | Glass-Ceramic | Borosilicate 3.3 | Fused Silica |
|---|---|---|---|
| Reference CTE | Near zero to about 1.0 x 10^-6/K by variant | About 3.3 x 10^-6/K | About 0.5 x 10^-6/K |
| Best starting point | Severe gradients and thermal shock | Moderate heat with practical fabrication | UV, purity and high-temperature optics |
| Visible appearance | Transparent, tinted, translucent or opaque | Clear with good visible transmission | Clear; grade changes UV/IR performance |
| Primary RFQ risk | Wrong optical/thermal variant | Treating all borosilicate grades as equal | Ignoring OH, purity and grade |
| Assembly risk | Rigid frame and edge restraint | Unsupported span and edge flaws | Contamination, mounting stress and devitrification |
Typical family-level data for initial selection. Use the named grade data sheet and project conditions for final design.
A pane heated uniformly can tolerate a different condition from a pane with a hot center locked into a cold metal frame. The temperature difference creates expansion mismatch and tensile stress, even when the peak temperature appears to be below a published maximum.
State the temperature map, duration and cooling event. This gives the engineer enough information to compare CTE, panel geometry, edge condition and mounting clearance instead of selecting from one temperature number.
Heat-glass quality control starts with traceable material identity, then checks the geometry and surfaces that govern thermal reliability.
Confirm material grade, thermal profile, atmosphere, optical task, geometry and assembly constraints.
Lock datums, edge profiles, holes, critical zones and the named substrate before fabrication.
Cut or CNC the part, grind edges and complete holes or slots before any incompatible downstream process.
Apply printing, strengthening, coating, polishing or cleaning in the validated sequence.
Release dimensions, surface quality and functional tests, then protect critical faces for shipment.
Inspection conditions and acceptance limits follow the approved drawing, material grade and validation plan.
These questions reveal whether the request is a material part or an engineered assembly.
The answer depends on duration, gradient, atmosphere, optical band and assembly. Glass-ceramic or fused silica may be appropriate, but the complete condition must be reviewed.
Borosilicate is one heat-resistant family. It has lower expansion than soda-lime glass but does not equal the thermal behavior of glass-ceramic or fused silica.
No. Material grade, temperature distribution, edge quality, aperture, restraint, cycles and atmosphere all influence performance.
Many grades can be drilled or CNC processed before final cleaning or other downstream operations. Hole geometry and distance to the edge must be reviewed.
Send the drawing, temperature profile, pressure if any, medium, wavelength, mounting detail, quantity and required inspection records.
Include: Part drawing and clear aperture | Continuous, peak and edge temperatures | Heating and cooling cycle | Atmosphere and cleaning chemicals | Visible, UV or IR requirement | Frame, gasket and pressure differential | Quantity and validation plan.
A complete thermal RFQ lets us identify the correct material family and the tests that should be confirmed on samples. We return a proposed material and process route, open technical questions, sample plan and inspection points for approval.
Tell us the material, size, thickness, tolerance, quantity, application, and any holes, slots, edges, coating, printing, or polishing requirements. We can manufacture custom glass components from your drawing, CAD file, sketch, or sample.
